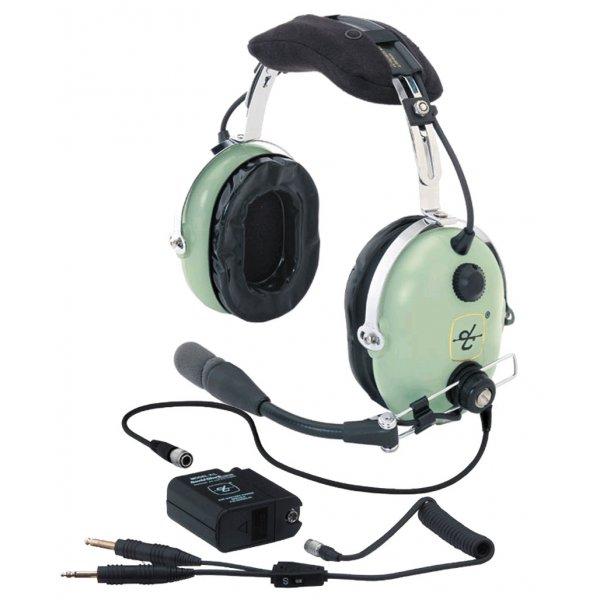

David Clark H10-13 X
Super Soft Head Pad
New Comfort gel, undercut ear seals
Battery Power Module - One 9 volt battery for up to 25 hours of operation.
Exclusive, patented flex/wire boom for easy, precise microphone placement.
Reduced headband pressure.
Pilot Selectable Automatic-Shut Off Feature.
M-7A noise canceling electret microphone provides clear, crisp transmission.
Stereo compatible for use with stereo intercom and cabin entertainment systems.
Weight (without cord assembly): 18 oz.
Special Features:
Electronic Noise Cancelling
General Aviation
Stereo
FAA TSO Approved C57 Cat. B and C58a
Impedance: Standard NRR: N/A
--------------------------------------------------------------------------------
Earphone Type: Dynamic(ENC) Noise-Canceling Mic: M-7A Amplified Electret
Earphone Impedance: Monaural, 150 Ohms nominal, stereo, 300 Ohms nominal per side Mic Impedance: 50 ohms +/- 20%
Earphone Sensitivity: 90 dB SPL on flat plate coupler, re 1mW input @ 1KHz Mic Sensitivity: 400mV RMS ±6dB into 150 ohm load @ 1kHz for 114dB SPL input
Earphone Frequency Response: 100-5,500 Hz Mic Freq Response: 300Hz--3.5KHz per RTCA DO 214
Earphone Plug: PJ-055 (.25" phone plug) Mic Plug: PJ-068 (.206" phone plug)
Boom Type: Patented Flex/Wire Cord: 5 ft.Straight
Headpad/Hardware: Super-Soft, Double-Foam Headpad,Lightweight Hardware Weight/Headset Only: 18 oz.
