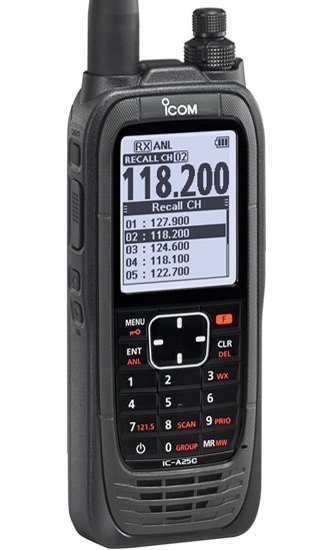

The A25 series is a powerful air band handheld with 6 watts of power and an IP57 waterproof rating; weather cannot stop these radios. The handheld includes a large 2350mAh Li-ion battery, providing a long operating time. The easy-to-use interface and large 2.3-inch LCD display combine to provide stress-free programming and in-flight operation.
Output Power:
|
|
6W typ. (PEP), 1.8W (CW)
|
Frequencies:
|
|
TX (COM)
RX (COM/NAV)
RX (Weather)
118.00-136.975MHz
108.00-136.975MHz
161.650-163.275MHz
|
Channel Spacing:
|
|
8.33/25KhZ
|
Channels:
|
|
300
|
Battery Life:
|
|
2350mAh Li-ion battery, up to 10.5 hours
Typical operation; Tx:Rx:Stand-by duty ratio = 5:5:90, Power save ON
|
Versions:
|
|
Communications only
Communications plus navigation
|
Large Easy to Use LCD
The A25’s large 2.3-inch LCD provides user-friendly, graphic screens. The day mode allows pilots to view the screen in direct sunlight and the night mode makes it easy to read in the dark.
Other Features
-
"Flip-flop" channel recall
-
Smart battery with detailed battery status
-
121.5MHz emergency key
-
Weather channels
-
Priority watch
-
VFO scan, memory-channel scan, priority scan
Included:
-
Antenna, FA-B02AR
-
Battery pack, BP-288
-
Belt clip, MB-133
-
Charger with AC adapter, BC-224 + BC-123SA
-
Hand strap
Specifications:
|
General
|
|
NAV and COM
|
A25N
NAV and COM channels
|
A25C
COM channels
|
|
|
Frequency Coverage
Tx
Rx
RX (Weather)
|
A25N
118.000–136.992 MHz
108.000–136.992 MHz
161.650–163.275 MHz
|
A25C
118.000-136.975 MHz
118.000-136.975 MHz
161.650-163.275 MHz
|
|
|
Channel spacing
|
25/8.33 kHz
|
|
Type of emission
|
6K00A3E, 5K60A3E, 16K0G3E (Weather)
|
|
Power supply requirement
|
7.2 V DC (BP-288), 11.0 V DC (External DC Jack)
|
|
Current drain (approximately)
Tx High
Rx Max. audio/Stand-by
|
Less than 1.8 A
Less than 500 mA/90 mA typ.
|
|
Antenna impedance
|
50 Ω
|
|
Operating Temperature Range
|
–10°C to +60°C; 14°F to 140°F
|
|
Dimensions (W×H×D)
(projections not included)
|
58.9 × 148.4 × 31.8 mm; 2.3 × 5.8 × 1.3 in
|
|
Weight (approximately)
|
340 g; 12.0 oz. (with BP-288)
|
|
Transmitter
|
|
Output power (at 7.2 V DC)
|
6.0/1.8 W typical (PEP/carrier)
|
|
Audio harmonic distortion
|
Less than 10% (at 60% modulation)
|
|
Hum and noise ratio
|
More than 35 dB
|
|
Spurious emissions
|
More than 46 dB
(Exclude fc±62.5 kHz for AM mode)
(Exclude fc±20.825 kHz for AM-N mode)
|
|
Frequency stability
|
±0.4 kHz
|
Receiver
|
|
Intermediate frequencies
1st
2nd
|
46.35 MHz
450 kHz
|
|
Sensitivity (typ)
NAV/COM (6 dB S/N)
WX (12 dB SINAD)
|
Less than 0 dBμ
Less than –8 dBμ
|
|
Squelch sensitivity (at threshold)
|
Less than 0 dBμ (AM), Less than –5 dBμ (FM)
|
|
Audio output power
|
More than 350 mW typ. (8 Ω load/60% Mod. at 10% distortion)
|
|
Hum and noise
|
More than 35 dB (at 30% modulation)
|
|
Spurious response
|
More than 60 dB (AM), More than 30 dB (FM)
|
|
Audio output power
|
More than 350 mW typ. (8 Ω load/60% Mod. at 10% distortion)
|
|
Ext. speaker connector
|
3-conductor 3.5 (d) mm (1⁄8ʺ)/8 Ω
|
Measurements made in accordance with FCC Part87.
